Plotting examples

The examples below show how pyClim can be used to make plots. The examples do not cover the whole functionalities of pyClim, but a subset of the most important plotting features. This documentation will be updated progressively to include the remaining functionalities.

All of the examples below make use of the example dataset included in this package, which the user can use for testing purposes.

Loading the example data

The first step for plotting is, of course, to load the data:

import numpy as np
import matplotlib.pyplot as plt
import matplotlib
import pandas as pd
import datetime as dt

from pandas import Grouper, DataFrame
import os
import glob

from scipy import stats, interpolate, signal

# Import pyclim
import numpy as np
import matplotlib
import pandas as pd
import datetime as dt

import os

# Import pyclimair
from pyclimair.common import (
    quality_control,
    compute_climate,
    compute_daily_records_oneyear,
    compute_records,
    plot_records_count,
    compute_and_plot_exceedances,
    plot_variable_trends,
    plot_data_vs_climate,
    plot_data_vs_climate_withrecords,
    plot_data_vs_climate_withrecords_multivar,
    plot_periodstats,
    plot_data_and_accum_anoms,
    plot_data_and_annual_cycle,
    plot_timeseries,
    timeseries_extremevalues,
    plot_annual_cycles,
    get_annual_cycle,
    annual_meteogram,
    plot_accumulated_anomalies,
    plot_anomalies,
    compare_probdist,
    categories_evolution,
    threevar_windrose,
    threevar_windrose_trend,
    threevar_windrose_probability,
    window_plot
)

from pyclimair.air import (
    annual_meteogram_with_pollutant
)

from pyclimair.clim import (
    compare_with_globaldataset
)

from pyclimair.utils import(
    get_continuous_cmap
)



    # Load the example data
    path = "%s/data/" % os.getcwd()
    csvfiles = glob.glob(os.path.join(path, "example_data.txt"))
    print(csvfiles)

    # Create metadata
    metadata = pd.DataFrame(["example", "example", 361.00, -361.00, 461]).T
    metadata.columns = ["Estacion", "Codigo", "latitud_OK", "longitud_OK", "Altitud"]

    # Some useful variables
    year_to_plot = 2025
    climate_normal_period = [1991, 2020]
    variables = ["Tmin", "Tmean", "Tmax", "Rainfall", "WindSpeed"]
    database = "Example"

    # Mapping variables
    units_list = {}  # ['ºC','ºC','ºC', 'm/s']
    units_list["Tmin"] = "ºC"
    units_list["Tmean"] = "ºC"
    units_list["Tmax"] = "ºC"
    units_list["Rainfall"] = "mm"
    units_list["WindSpeed"] = "m/s"

    wd_map = {
        "N": 0,
        "NNE": 22.5,
        "NE": 45,
        "ENE": 67.5,
        "E": 90,
        "ESE": 112.5,
        "SE": 125,
        "SSE": 147.5,
        "S": 180,
        "SSW": 202.5,
        "SW": 225,
        "WSW": 247.5,
        "W": 270,
        "WNW": 292.5,
        "NW": 315,
        "NNW": 337.5,
    }

    # Select metadata
    metadatos_sta = metadata[metadata.ID == "example"]
    codigo_sta = metadatos_sta.ID.values[0]
    # nombres_mod[listanombres] = nombres_mod[listanombres].replace('/','-')
    station_name = str(metadatos_sta.Name.values[0])
    station_name = station_name.replace("/", "-")

    plotdir = os.path.join(os.getcwd(), "plots/%s/%s" % (database, "example"))
    plotdir = plotdir.replace("\\", "/")
    if os.path.isdir(plotdir) == False:
        try:
            os.mkdir(plotdir)
        except OSError:
            print("Creation of the directory %s failed" % plotdir)
        else:
            print("Successfully created the directory %s " % plotdir)


    # Read data
    input_file = [x for x in csvfiles if codigo_sta in x][0]
    df1 = pd.read_csv(input_file, sep=";", decimal=",", header=0, encoding="latin-1")

    df1["Date"] = pd.to_datetime(df1.iloc[:, 0])
    df1 = df1.set_index("Date")

    df1["Day"] = df1.index.day
    df1["Month"] = df1.index.month
    df1["Year"] = df1.index.year
    df1["Accumpcp"] = df1.groupby(df1.index.year)["Rainfall"].cumsum()

Plotting a timeseries of anomalies

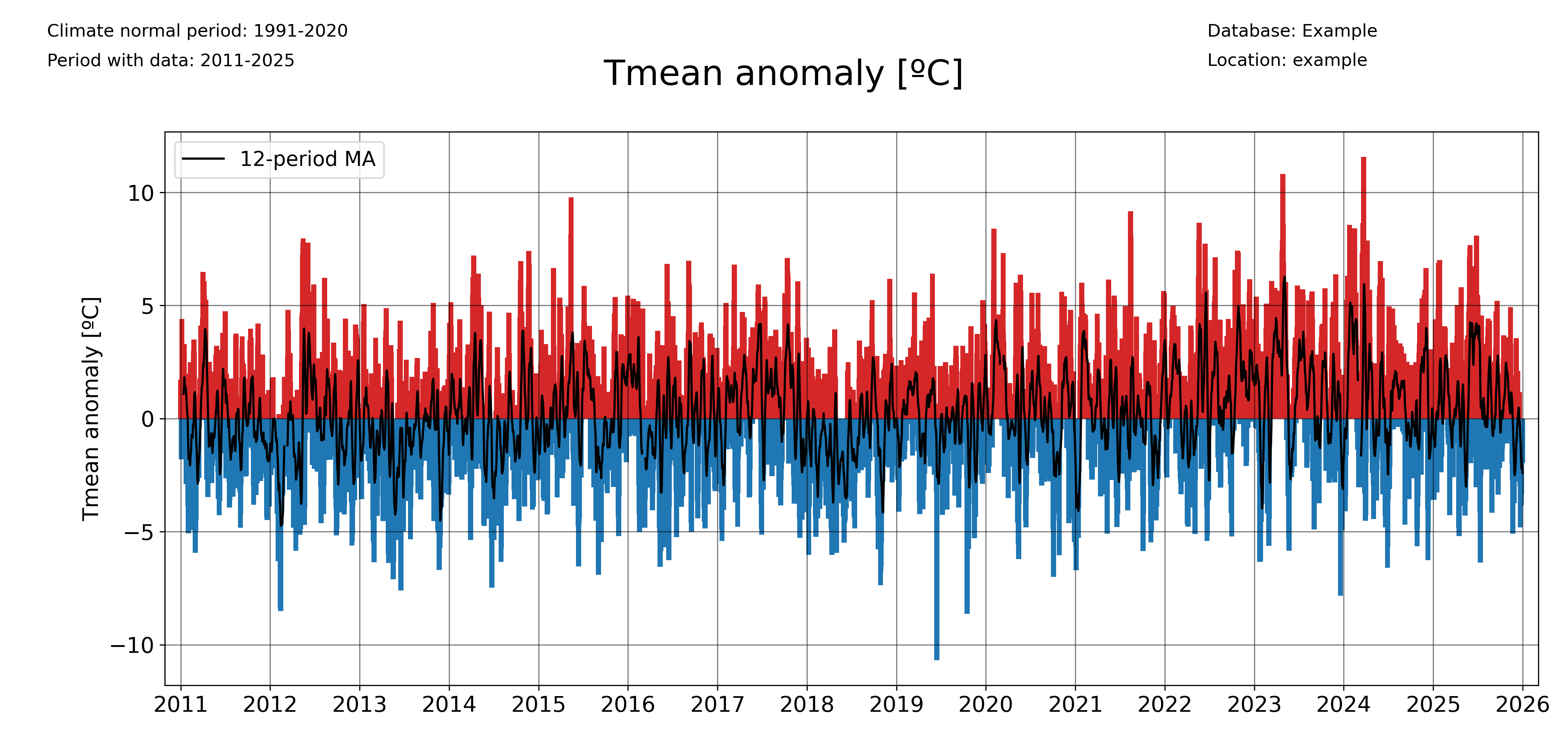

The ‘freq’ parameter allows to choose the temporal aggregation of the anomalies. For example, for daily anomalies use freq=’1D’:

plot_anomalies(
    df1_complete,
    "Tmean",
    "ºC",
    climate_normal_period,
    database,
    station_name,
    plotdir + "/daily_anomalies_Tmean.png",
    window=12,
    freq="1D",
)

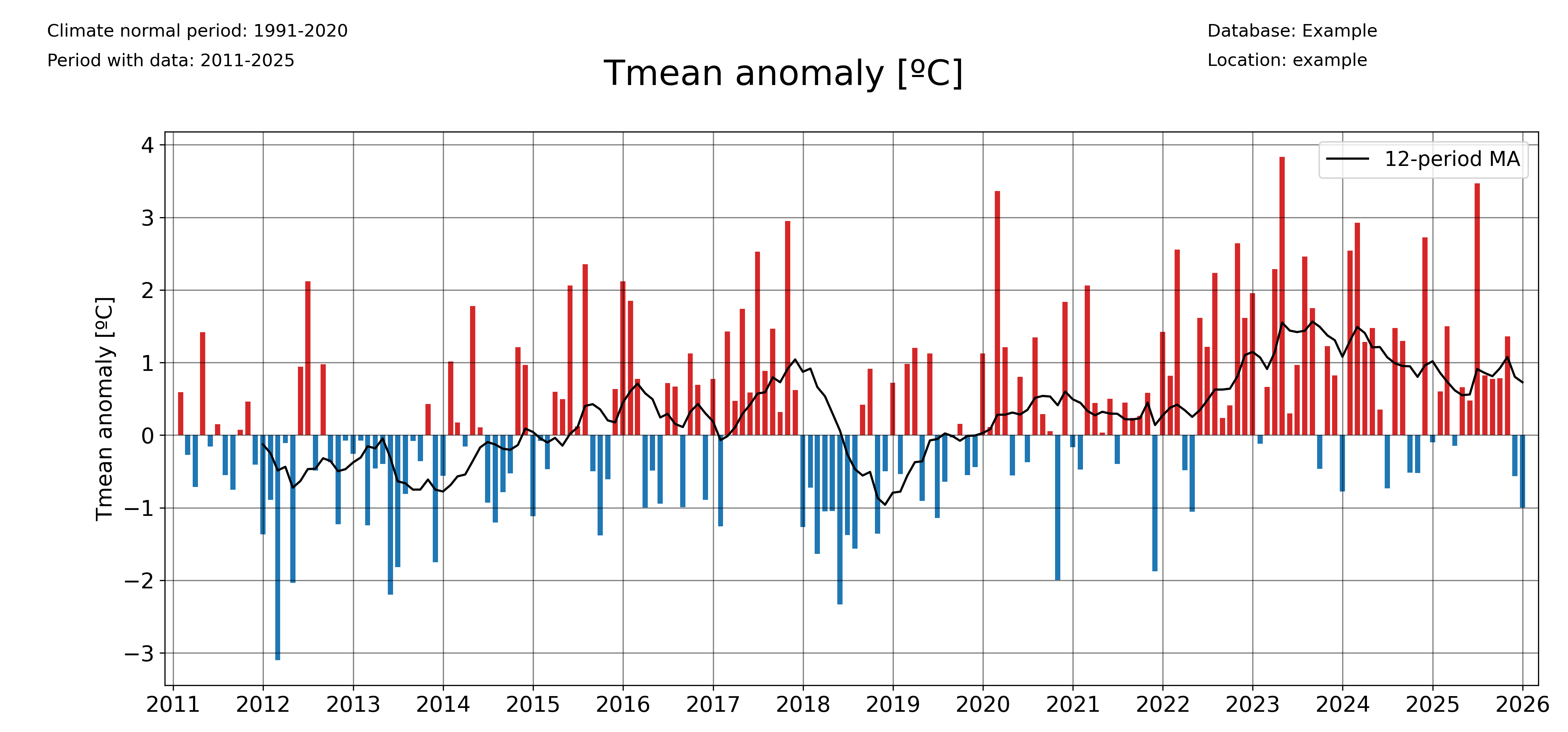

And for monthly anomalies, freq=’1ME’:

plot_anomalies(
    df1_complete,
    "Tmean",
    "ºC",
    climate_normal_period,
    database,
    station_name,
    plotdir + "/monthly_anomalies_Tmean.png",
    window=12,
    freq="1ME",
)

Plotting accumulated anomalies

Use the pyclim.common.plot_accumulated_anomalies() function to plot the accumulated anomalies during a year. Again, the ‘freq’ parameter allows the user to vary the temporal aggregation of the accumulated anomalies.

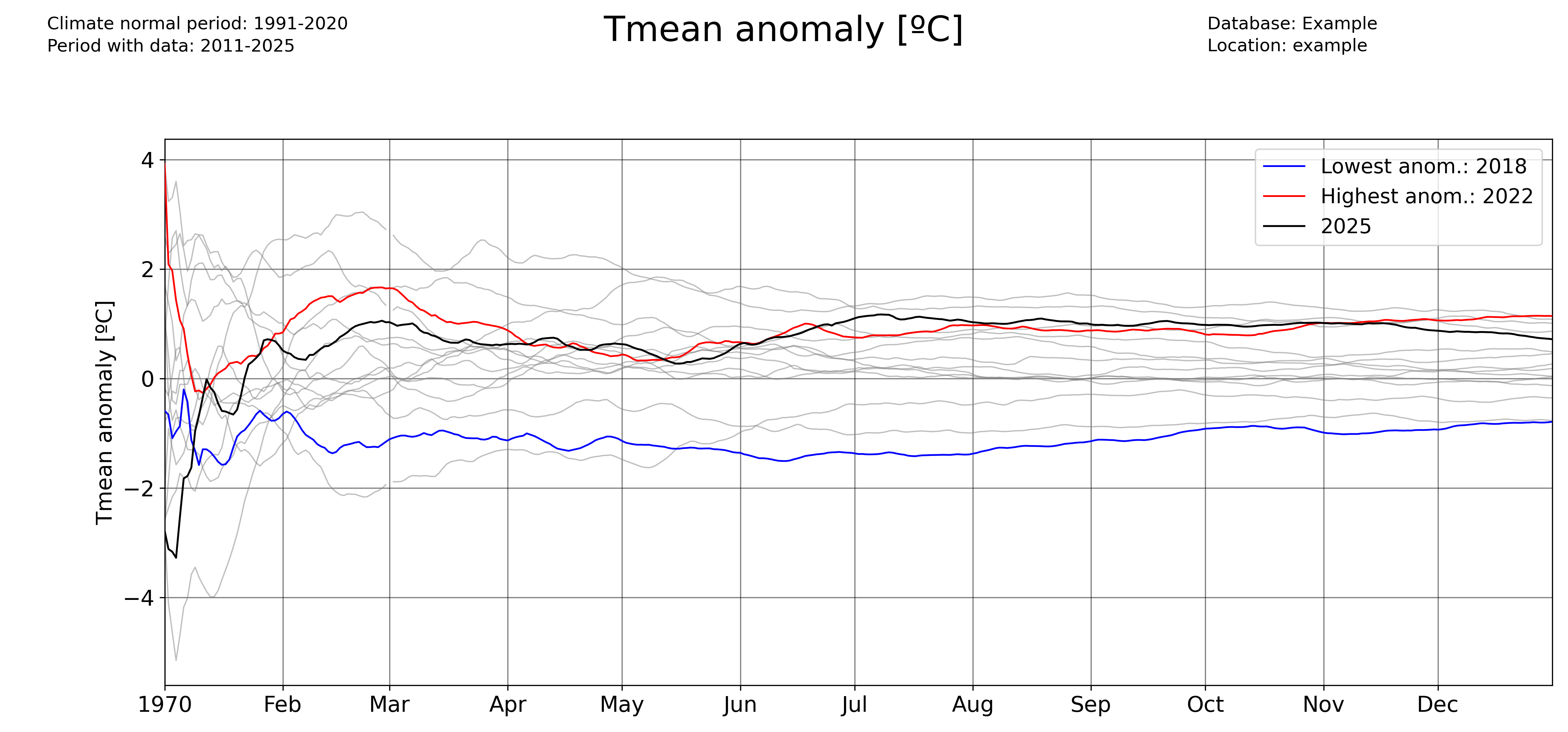

Accumulated anomalies from day to day:

plot_accumulated_anomalies(
    df1_complete,
    "Tmean",
    "ºC",
    2025,
    climate_normal_period,
    database,
    station_name,
    plotdir + "/Tmean_accum_anoms_daily.png",
    freq="1D",
)

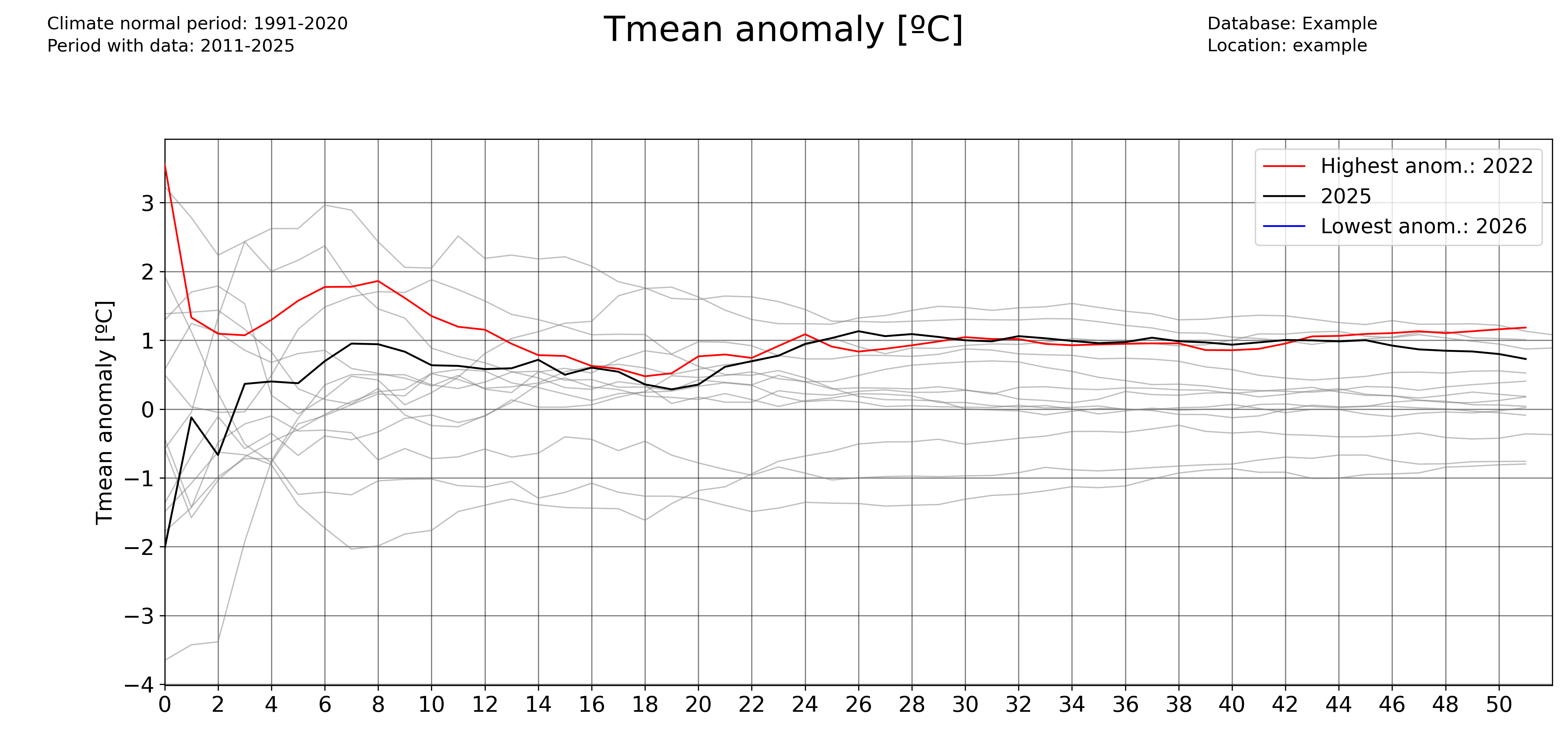

Weekly accumulated anomalies:

plot_accumulated_anomalies(
    df1_complete,
    "Tmean",
    "ºC",
    2025,
    climate_normal_period,
    database,
    station_name,
    plotdir + "/Tmean_accum_anoms_daily.png",
    freq="1D",
)

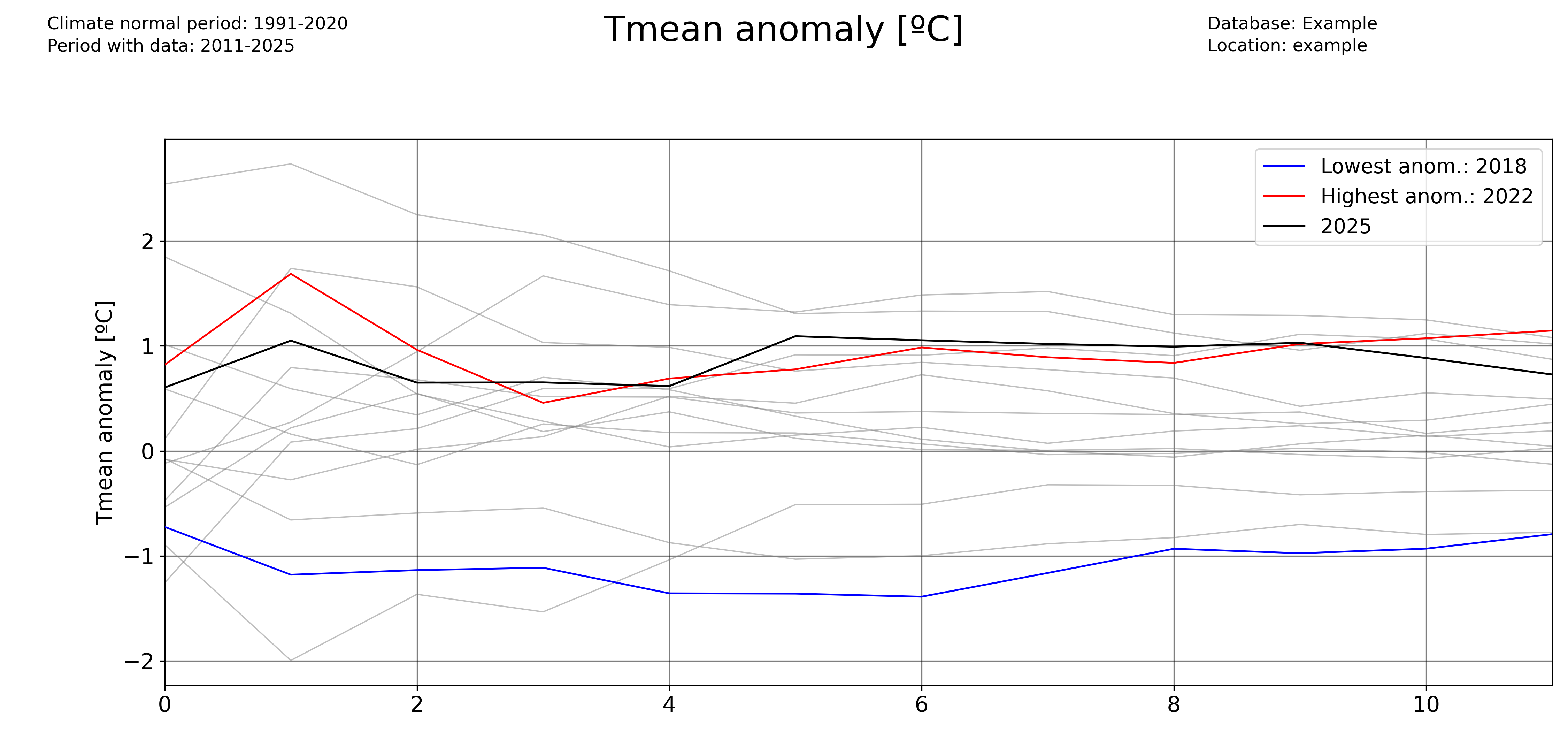

Monthly accumulated anomalies:

plot_accumulated_anomalies(
    df1_complete,
    "Tmean",
    "ºC",
    2025,
    climate_normal_period,
    database,
    station_name,
    plotdir + "/Tmean_accum_anoms_daily.png",
    freq="1D",
)

Computing and plotting record values

For computing the record values, use the pyclim.common.compute_daily_records() function. Then, one can plot the evolution of the number of high and low records with pyclim.common.plot_records_count(). The following example illustrates how to compute and plot the number of days in each year exceeding a daily record.

# Plot data from a certain period versus the climatological normal
records_df_allvars = pd.DataFrame()
for i in range(
    len(
        sorted(
            list(set(df1_complete.columns) & set(variables)),
            key=lambda x: variables.index(x),
        )
    )
):
    variable = sorted(
        list(set(df1_complete.columns) & set(variables)),
        key=lambda x: variables.index(x),
    )[i]
    units = units_list[variable]
    enddate = datetoday
    # plot data
    plot_data_vs_climate(
        df1_complete,
        climate_df_sep,
        variable,
        units,
        ndaysago,
        enddate,
        cmap_anom_bars,
        database,
        climate_normal_period,
        station_name,
        plotdir + "/%speriodtimeseries_climatemedian19912020.png" % variable,
        kind="bar",
        fillcolor_gradient=False,
    )


multiyearrecords_df_allvars = (
    pd.DataFrame()
)  # For saving multiple variable records' DataFrames

varis = ["Tmax", "Tmean", "Rainfall"]
units_varis = []
for i in range(len(varis)):
    units_varis.append(units_list[varis[i]])

    multiyearrecords_df = compute_daily_records(
        df1_complete, varis[i], df1_complete.index.year.unique()
    )  # Compute records for variable
    multiyearrecords_df_allvars = pd.concat(
        [multiyearrecords_df_allvars, multiyearrecords_df], axis=1
    )


# Plot annual records

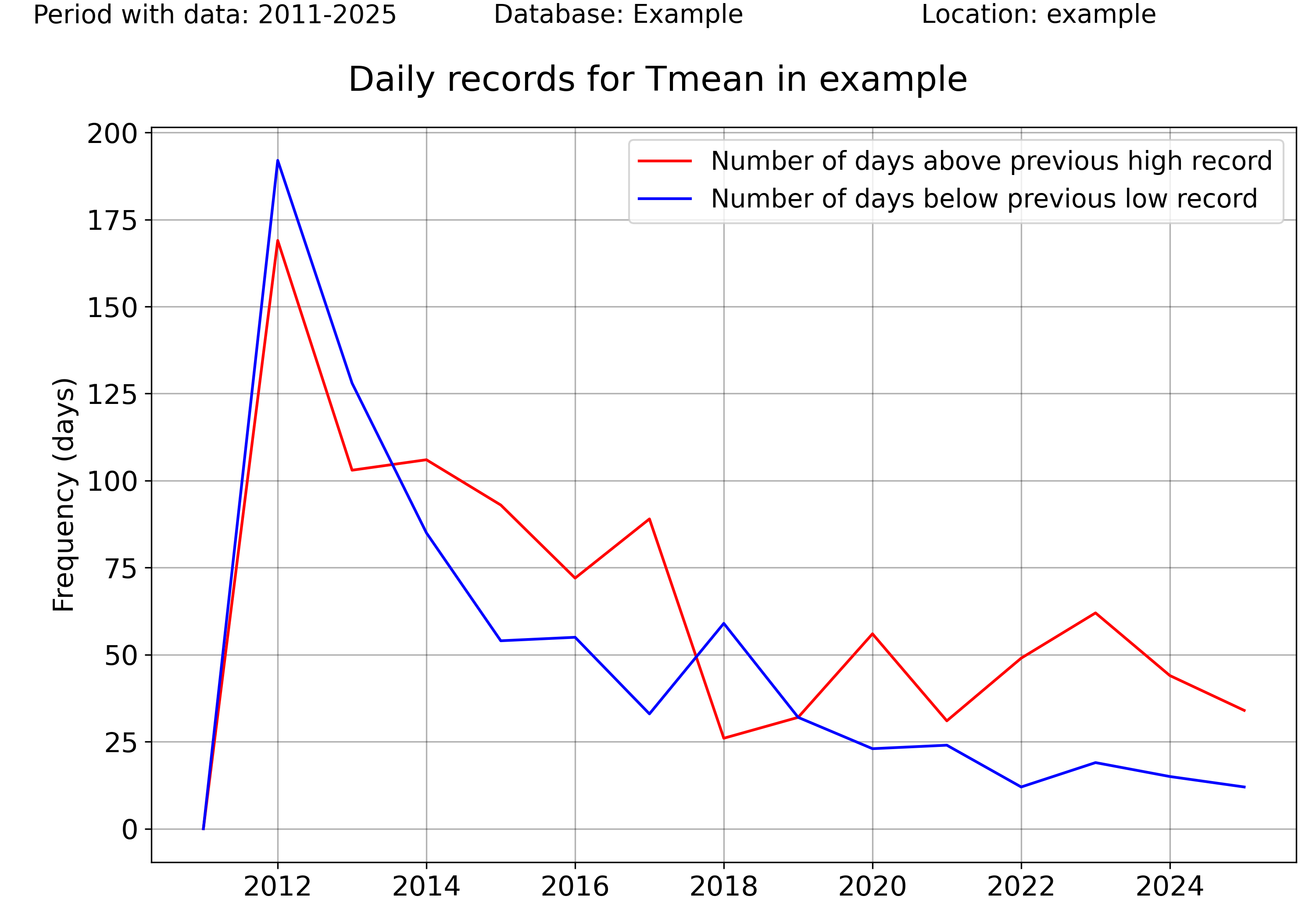

plot_records_count(
    multiyearrecords_df_allvars,
    "Tmean",
    database,
    station_name,
    plotdir + "/annual_records_Tmean.png",
    freq="day",
)  # Plot number of days exceeding daily records

Once more, the user can set the temporal frequency of the records’ aggregation using the ‘freq’ argument. In version 0.0.1, accepted values are ‘day’ (for daily records), ‘month’ for monthly records, and ‘year’ for absolute records.

plot_records_count(
    multiyearrecords_df_allvars,
    "Tmean",
    database,
    station_name,
    plotdir + "/annual_records_Tmean.png",
    freq="month",
)  # Plot number of days exceeding daily records

Plotting data versus the climatological normal values

One interesting functionality of the pyClimAir package is the ability to plot data versus its climatological normal values, including the occurrence of record values given that a DataFrame including records is provided.

colors_anom_bars = ["#34b1eb", "#eb4034"]
levels_anom_bars = [0, 1]
cmap_anom_bars = get_continuous_cmap(
    colors_anom_bars, levels_anom_bars, 2
)  # Only works with HEX colors

# Plot data from a certain period versus the climatological normal
variable = "Tmean"
units = "ºC"
inidate = dt.datetime(2025, 1, 1)
enddate = dt.datetime(2025, 12, 31)
# Without records
plot_data_vs_climate(
    df1_complete,
    climate_df_sep,
    variable,
    units,
    inidate,
    enddate,
    cmap_anom_bars,
    database,
    climate_normal_period,
    station_name,
    plotdir + "/%speriodtimeseries_climatemedian19912020.png" % variable,
    kind="bar",
    fillcolor_gradient=False,
)
# With records

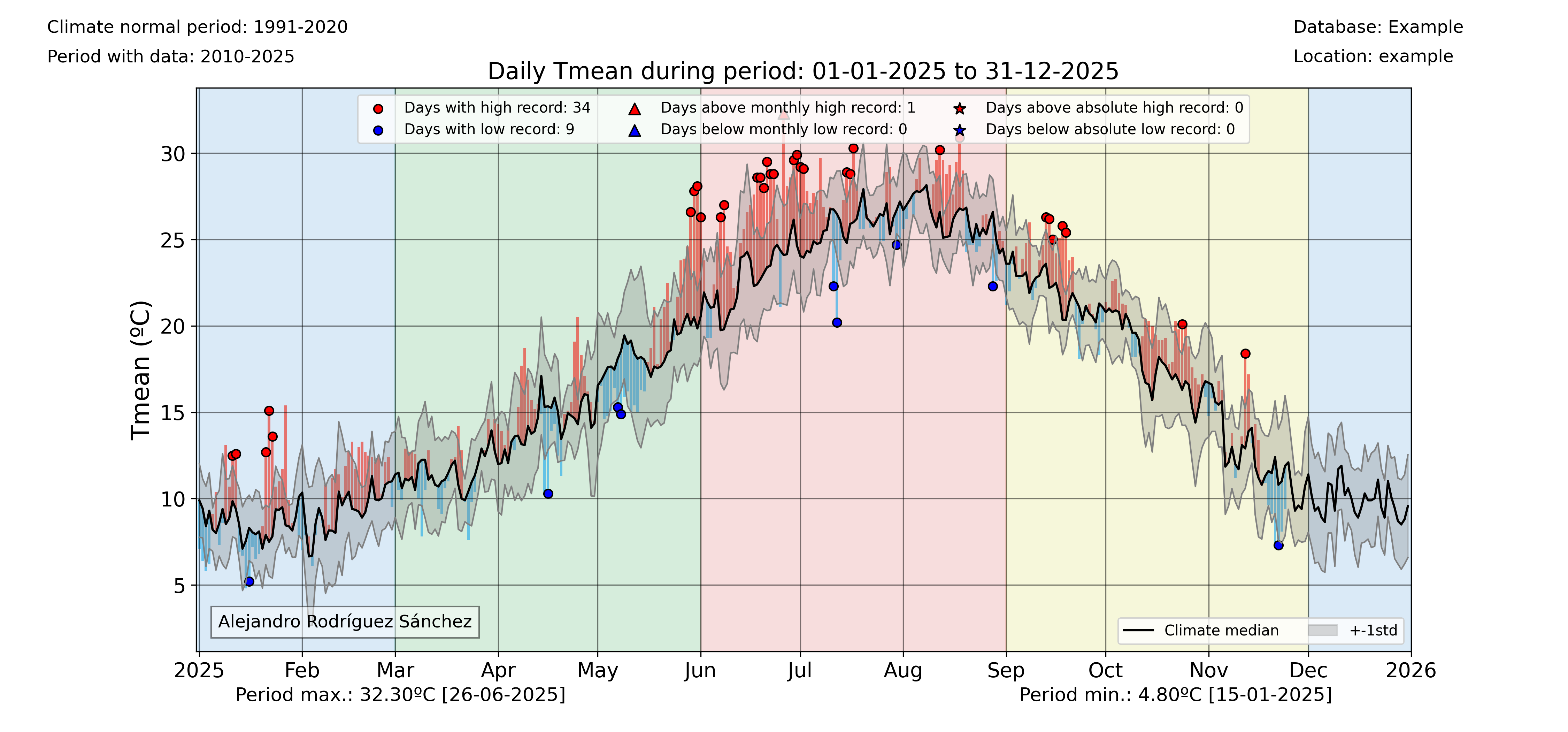

plot_data_vs_climate_withrecords(
    df1_complete,
    climate_df_sep,
    multiyearrecords_df_allvars,
    "Tmean",
    "ºC",
    inidate,
    enddate,
    cmap_anom_bars,
    database,
    climate_normal_period,
    station_name,
    plotdir + "/%stimeseries_climatemedian19912020_withrecords.png" % varis[i],
    kind="bar",
    fillcolor_gradient=False,
)

Classify data by categories

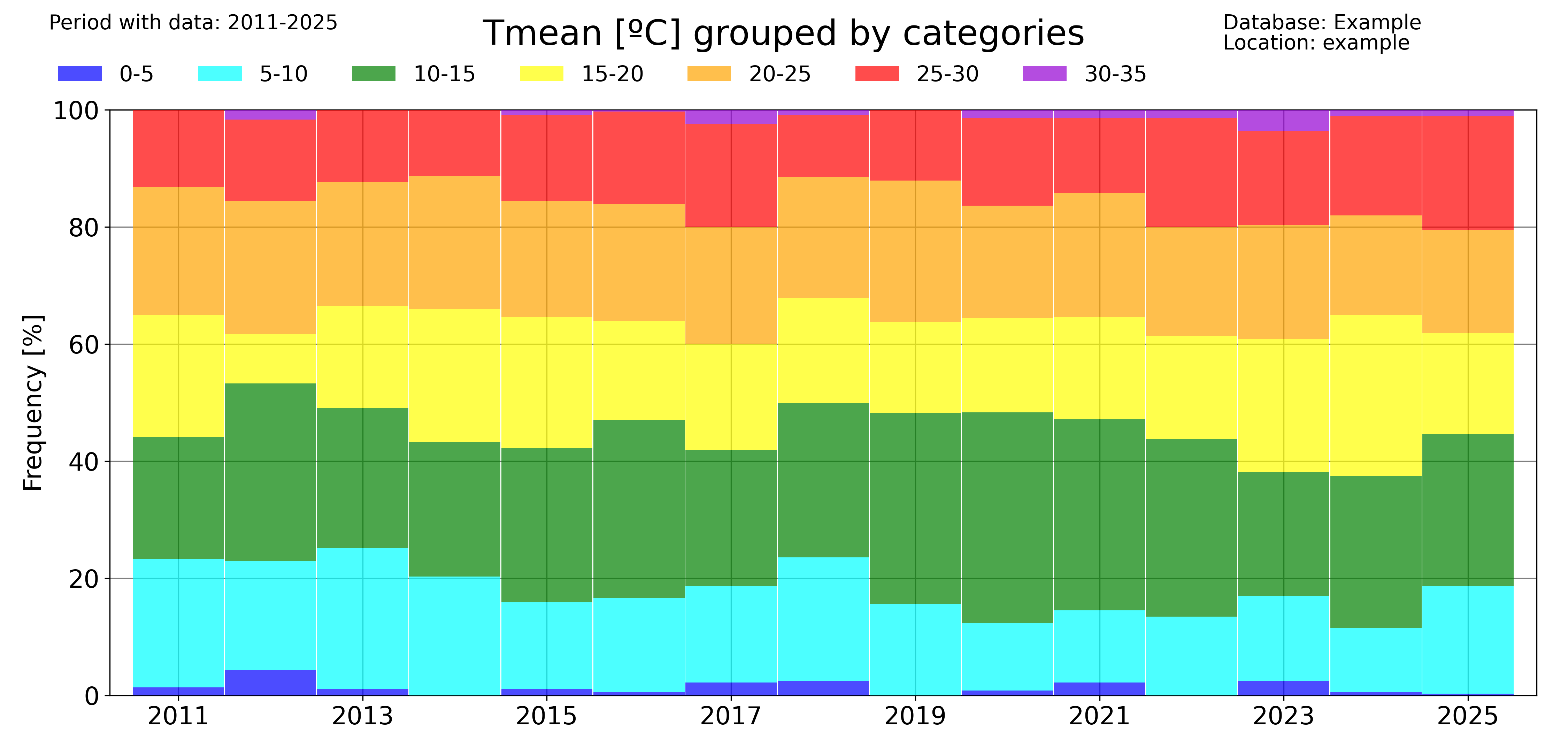

Another visual way to represent the evolution of your data is to classify them by categories and then see the evolution of the occurrency of each category. This is done in pyClim with the pyclim.common.categories_evolution() function. The user can see the evolution of each category, grouped by their monthly, seasonal and yearly occurrences. If no categories’ labels are given, the script computes the labels from the given categories. An example is shown below:

# Categorize data
categories = [0, 5, 10, 15, 20, 25, 30]
colors = ["blue", "cyan", "green", "yellow", "orange", "red"]
categories_evolution(
    df1_complete,
    "Tmean",
    "ºC",
    categories,
    [],
    colors,
    database,
    station_name,
    plotdir + "/categories_Tmean_default.png",
    time_scale="year",
)

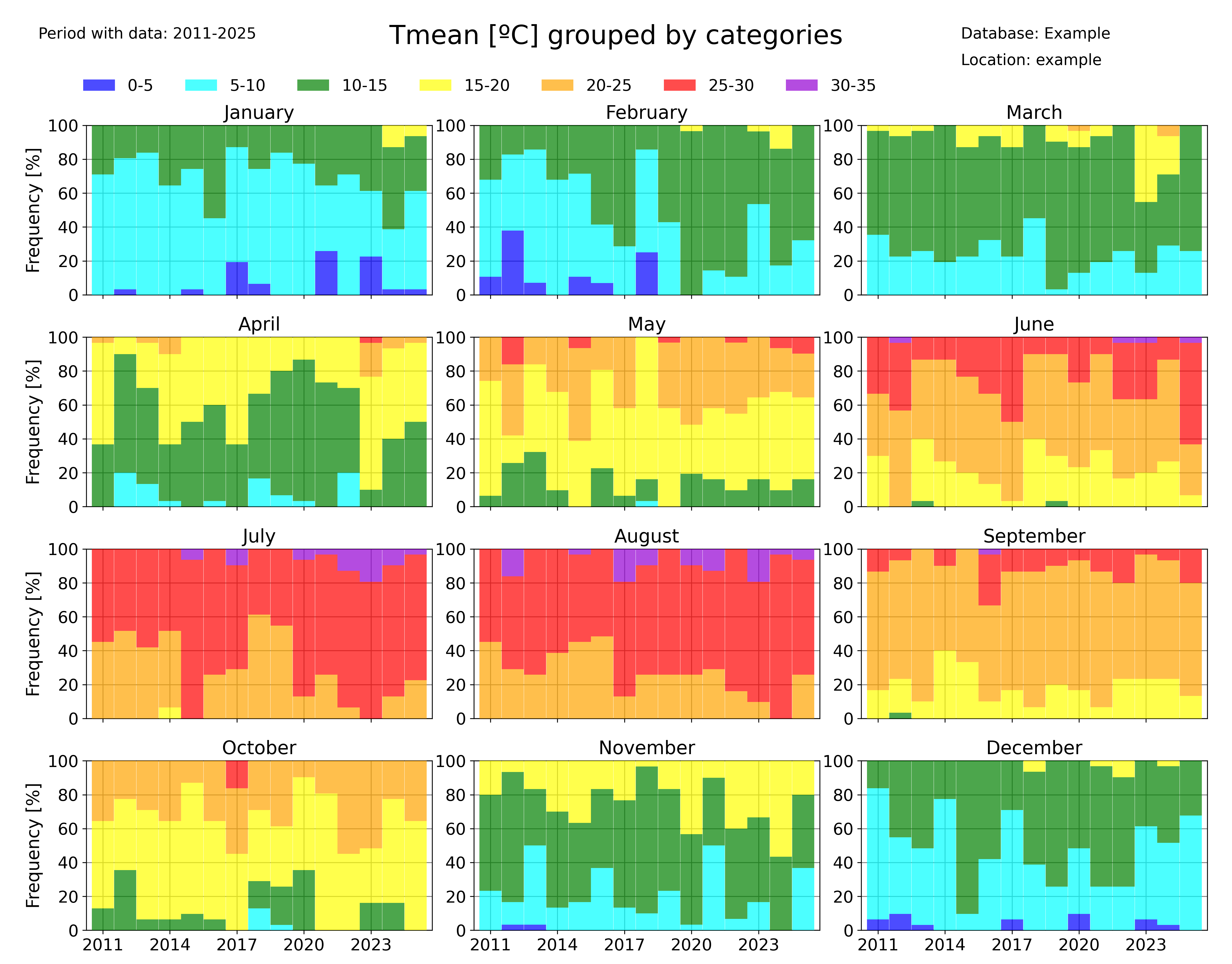

The ‘time_scale’ parameter allows to modify the temporal aggregation of the data:

categories_evolution(
    df1_complete,
    "Tmean",
    "ºC",
    categories,
    [],
    colors,
    database,
    station_name,
    plotdir + "/categories_Tmean_month_default.png",
    time_scale="month",
)

Identifying trends in a dataset

pyClimAir also allows you to rapidly identify trends in a dataset. Several functions allow to do that.

The pyclim.common.plot_variable_trends() function, plots the time evolution of a certain variable. It also plots the mean value of each ‘averaging_period’ periods. The ‘grouping’ argument controls the temporal frequency of the variable aggregation, and the ‘grouping_stat’ controls the statistic to be plotted. It can be set to ‘mean’, if the user wants to know the temporal evolution of the average value of a variable, or to ‘sum’ (to see the evolution of the accumulated value of a variable, for example the total rainfall). The optional argument ‘alldatamean’, which is set to True by default, allows to plot the average value of all the analysed period.

# Evolution of the mean value of a variable
plot_variable_trends(
    df1_complete,
    var,
    units,
    database,
    station_name,
    plotdir + "/%s_withmean.png" % var,
    averaging_period=5,
    grouping="year",
    grouping_stat="mean",
    rain_limit=1,
)

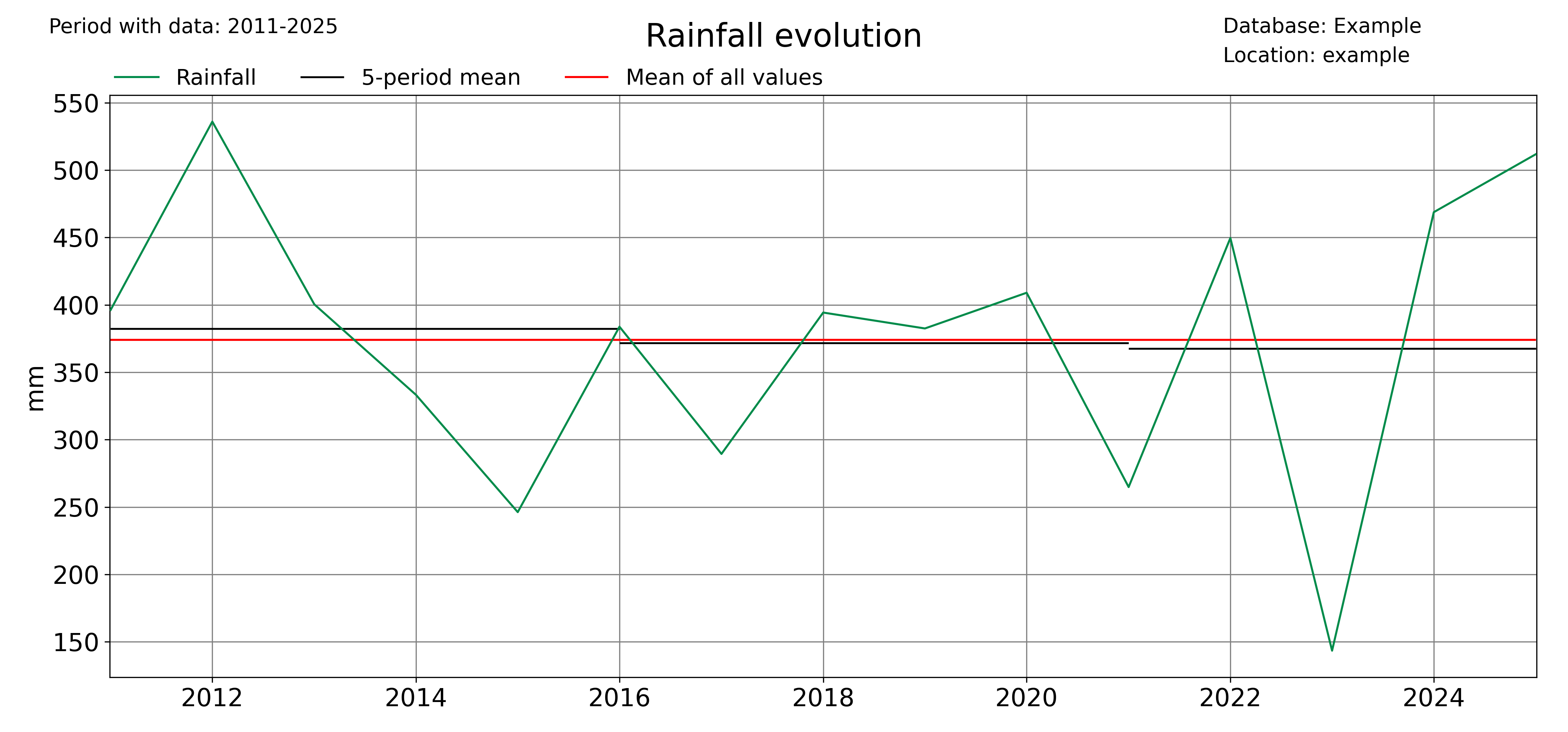

# Evolution of the accumulated value of a variable
plot_variable_trends(
    df1_complete,
    var,
    units,
    database,
    station_name,
    plotdir + "/%s_sum_withmean.png" % var,
    averaging_period=5,
    grouping="year",
    grouping_stat="sum",
    rain_limit=1,
)

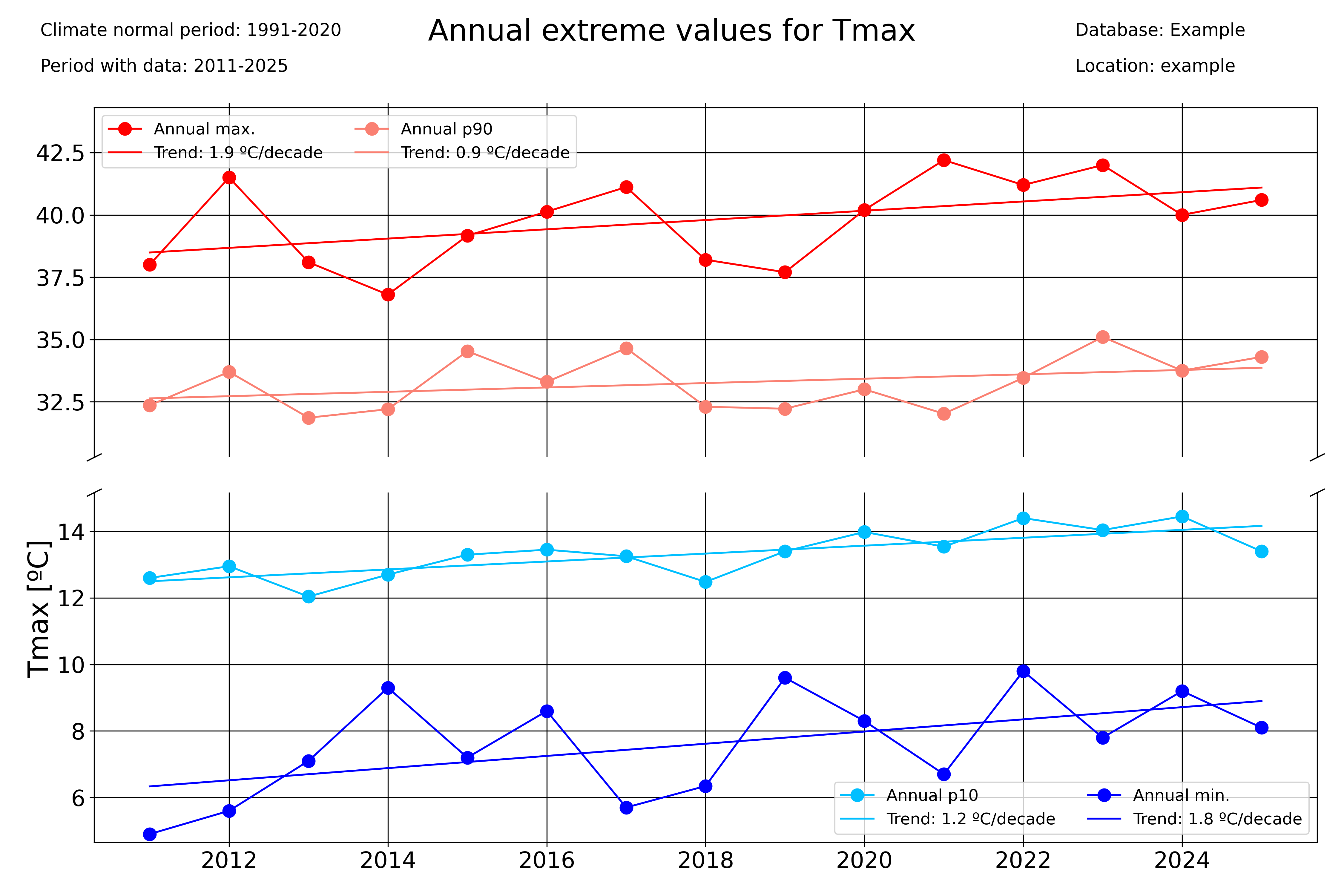

Another function that allows to identify trends is the pyclimair.common.timeseries_extremevalues() function, which allows the user to plot the evolution of extreme values of a given variable. As usual, the user can control the time discretization of the extreme values. Below, an example for annual and seasonal values is given.

### Seasonal plots
var = "Tmax"
units = "ºC"
# Extreme values
timeseries_extremevalues(
    df1_complete,
    var,
    units,
    climate_normal_period,
    database,
    station_name,
    plotdir + "/Annualextremevalues_%s_lines.png" % var,
    time_scale="Year",
)
timeseries_extremevalues(
    df1_complete,
    var,
    units,
    climate_normal_period,
    database,
    station_name,
    plotdir + "/seasonalextremevalues_%s_lines.png" % var,
    time_scale="season",
)

Period averages

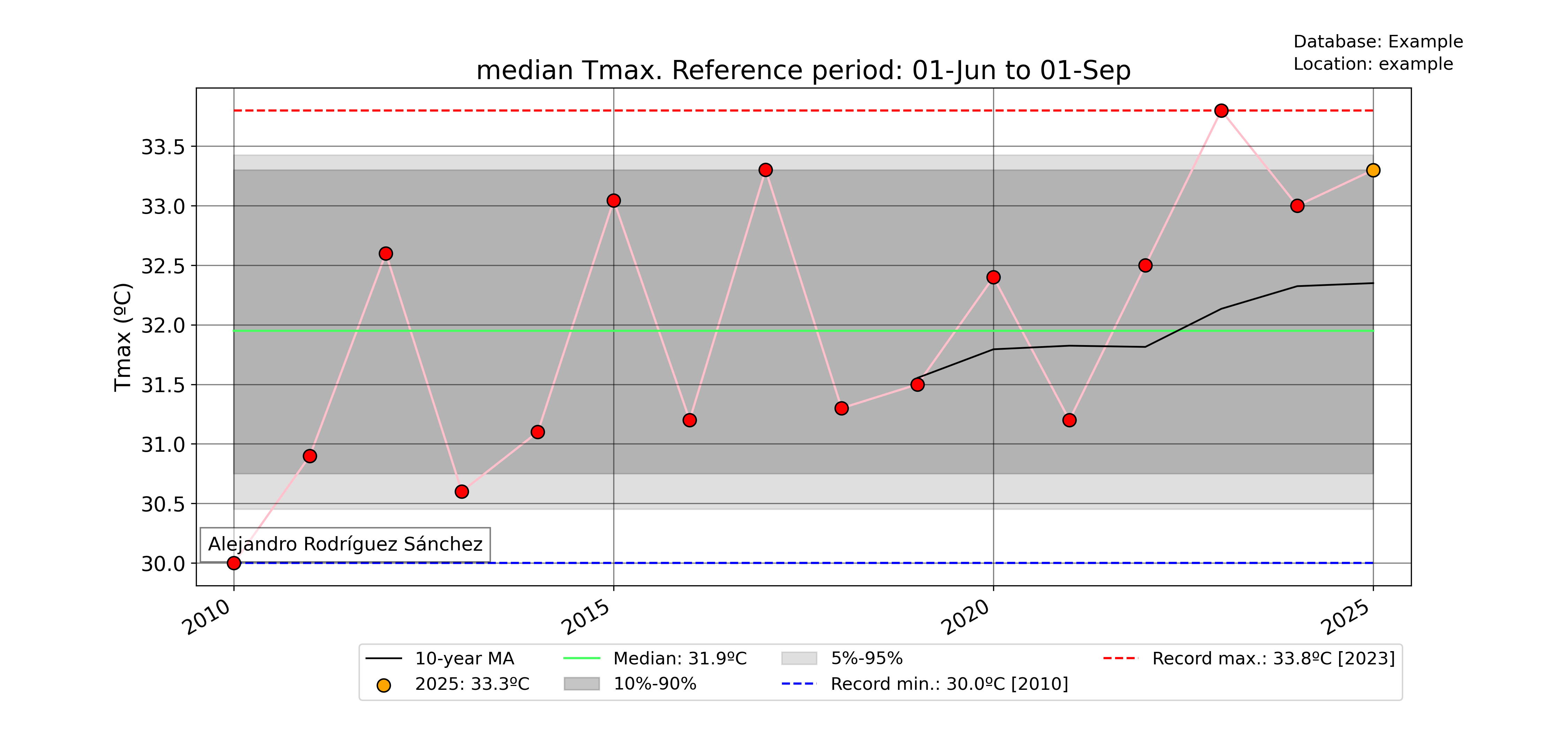

Use the pyclim.common.plot_periodaverages() function to plot the evolution of the mean or median value of a variable between two days. In the example below, the evolution of the daily mean temperature between June 1st (included) and September 1st (not included) is plotted:

### Plot median value of a certain period for every year with data
for var in ["Tmean"]:
    units = units_list[var]
    plot_periodaverages(
        df1_complete,
        climate_df_sep,
        var,
        units,
        dt.datetime(2025, 6, 1),
        dt.datetime(2025, 9, 1),
        station_name,
        database,
        plotdir + "%speriodaverages.png" % var,
        stat="median",
        window=10,
    )

Meteograms

pyClimAir also offers the possibility of displaying data in form of a meteogram. A meteogram is a graphical presentation of one or more meteorological variables with respect to time. pyClim offers to construct a meteogram using Temperature, Rainfall and Wind Speed data, as showed in the example below. In pyClimAir, the meteogram shows, for each variable, a comparison of the given year data with the climatological normal values (provided that a DataFrame with the climate normal values is given). If the “plot_anoms” parameter is set to True, the values of the given year are represented as departures from the climatological normal values, as in this example.

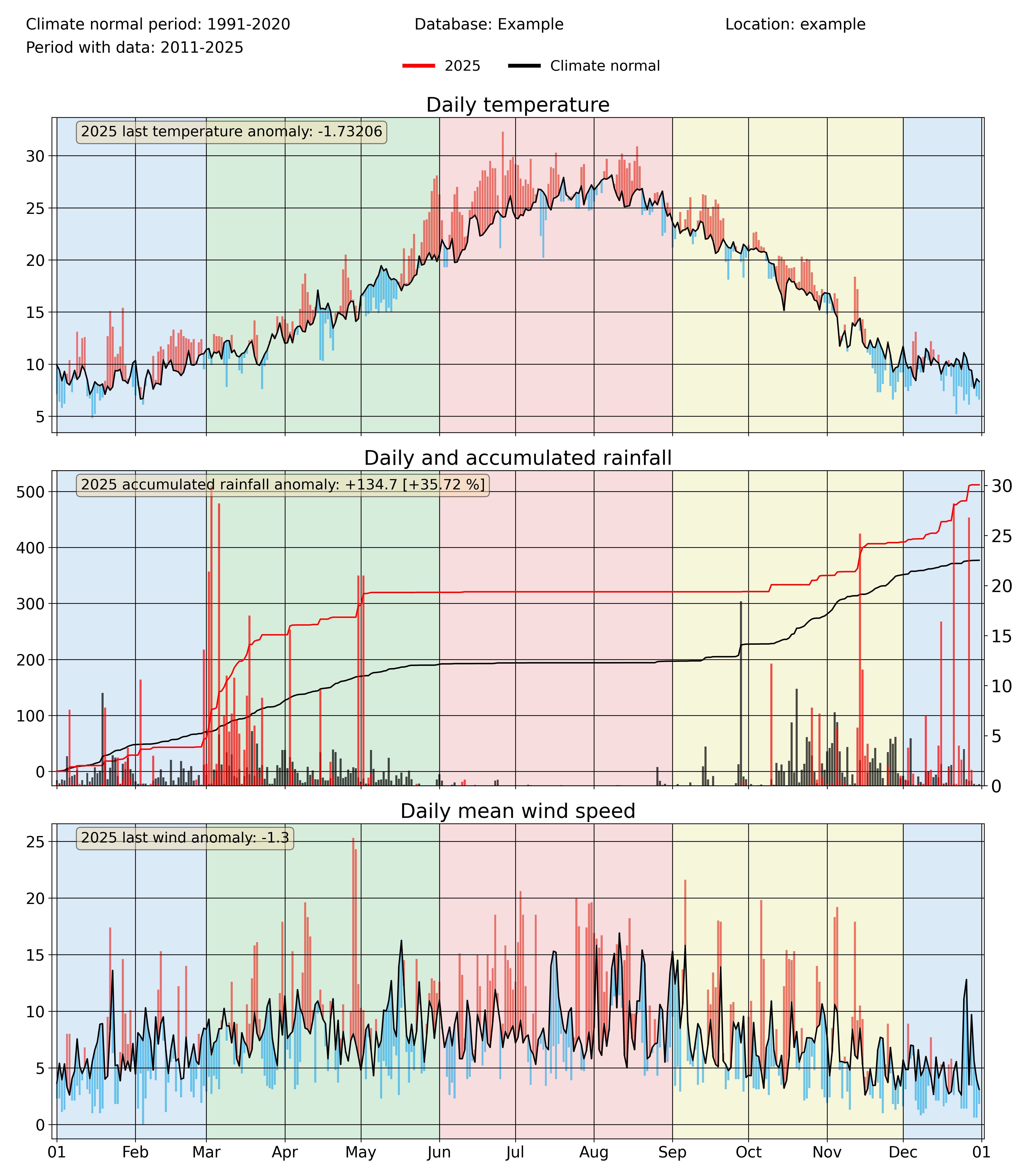

annual_meteogram(
    df1_complete,
    climate_df_sep,
    year_to_plot,
    climate_normal_period,
    database,
    station_name,
    plotdir + "/%i_meteogram_bars.png" % year_to_plot,
    plot_anoms=True,
)

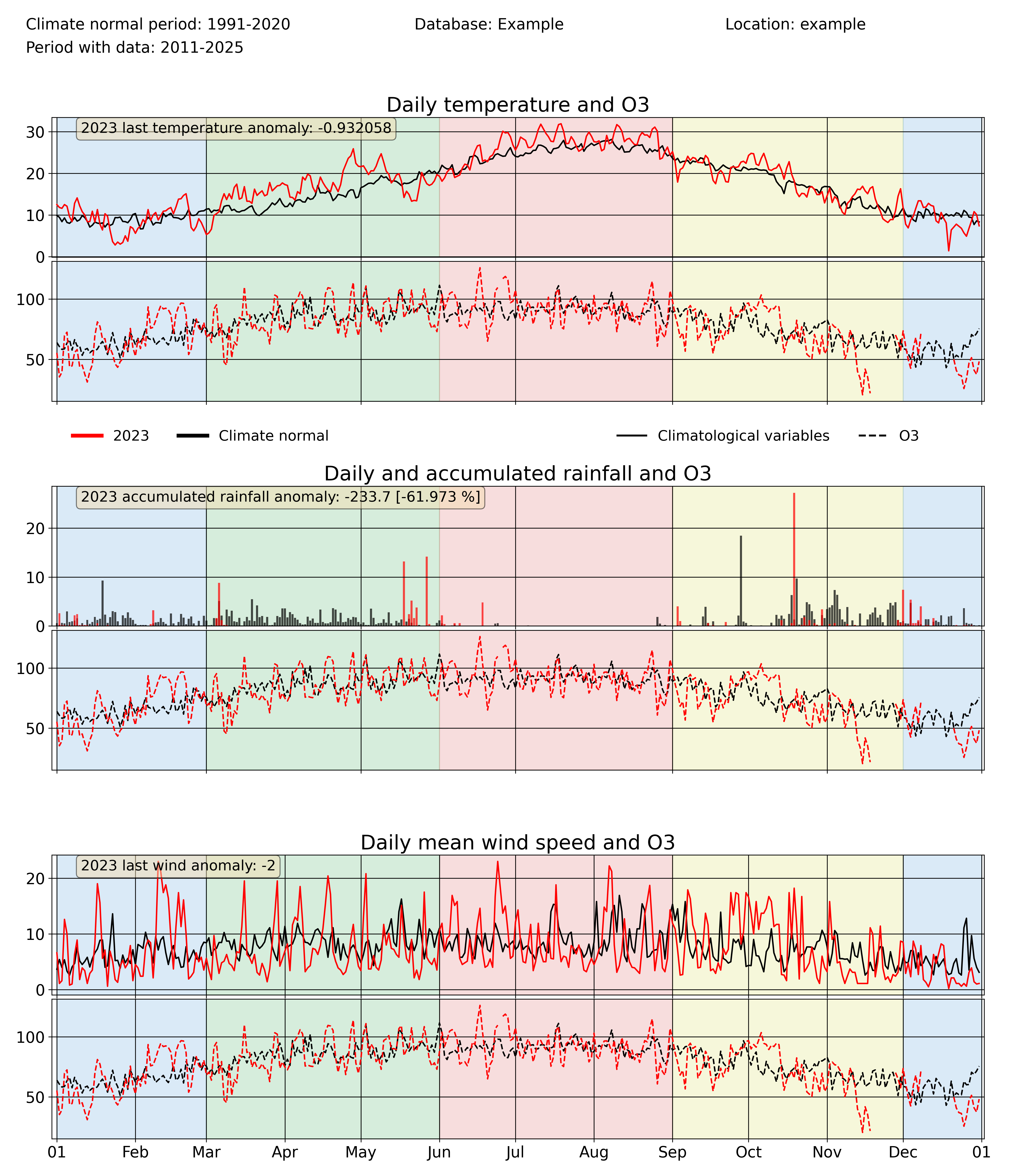

Since version 1.0.0, pyClimAir allows to include a fourth variable in the meteograms, with the aim of comparing the temporal evolution of air pollutants with relevant meteorological variables. This capability is included in pyclimair.air.annual_meteogram_with_pollutant():

annual_meteogram_with_pollutant(
    df1_complete,
    climate_df_sep,
    2023,
    'O3',
    climate_normal_period,
    database, station_name,
    plotdir+'/2023_meteogram_withpols_inside.png',
    plot_anoms=False,
    pol_subplot=False
    )

Comparing probability distributions

A capability introduced in version 1.0.0 is the function pyclimair.common.compare_probdist(), which allows to compare the probability distribution of a certain period with that of a climatological reference period. Three options are given to the user in terms of the plot type: histogram, Cumulative Distribution Function (CDF) and both. The example below shows the result for the latter case. As in other pyClimAir functionalities, this function allows for yearly, seasonal and monthly aggregations.

compare_probdist(
    df1_complete, df_normalclimate,
    [-5,0,5,10,15,20,25,30,50], 'Tmax', 'ºC',
    climate_normal_period, database, station_name,
    plotdir+'/Tmax_probdist.png', dist_type='histogram'
    )

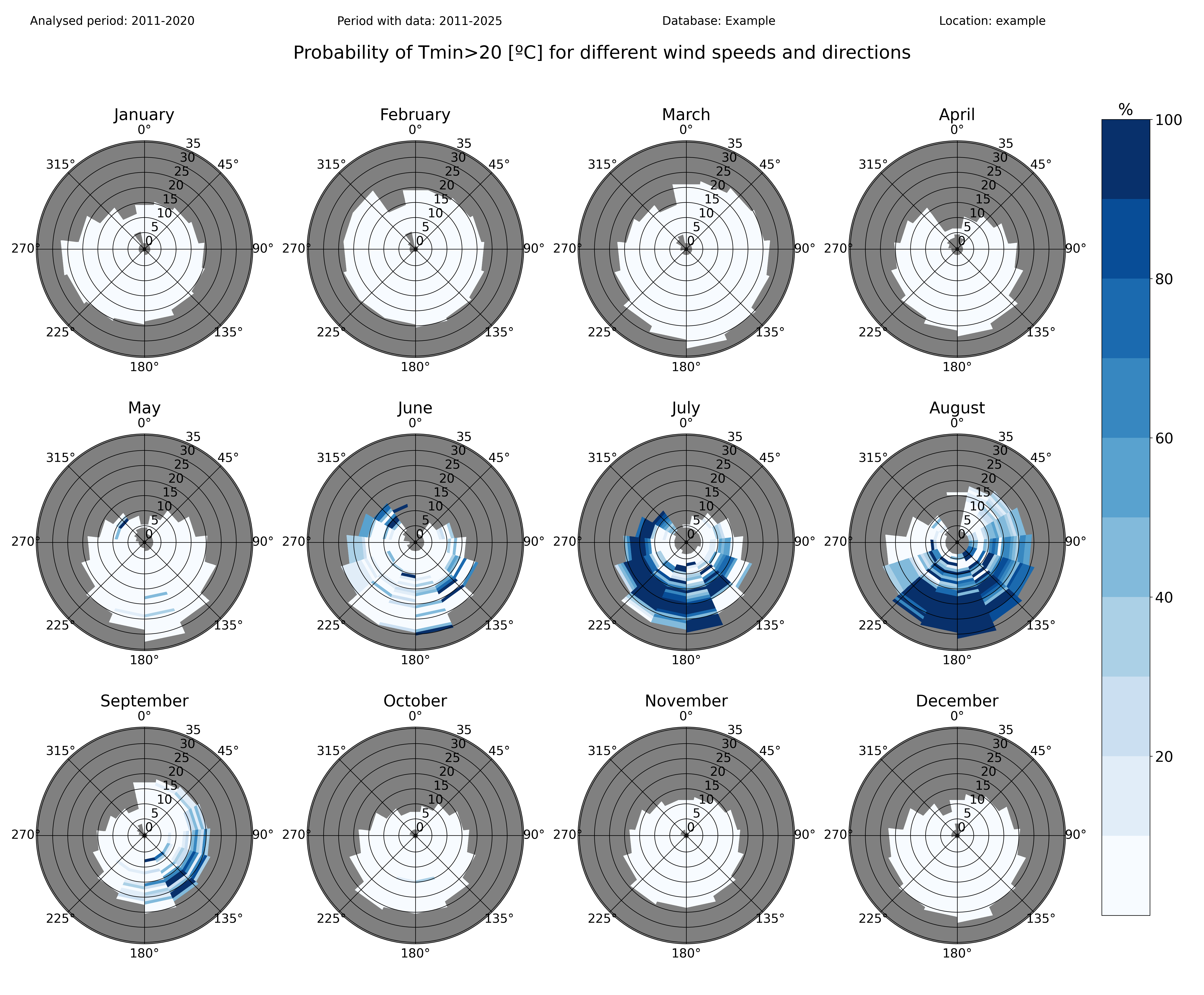

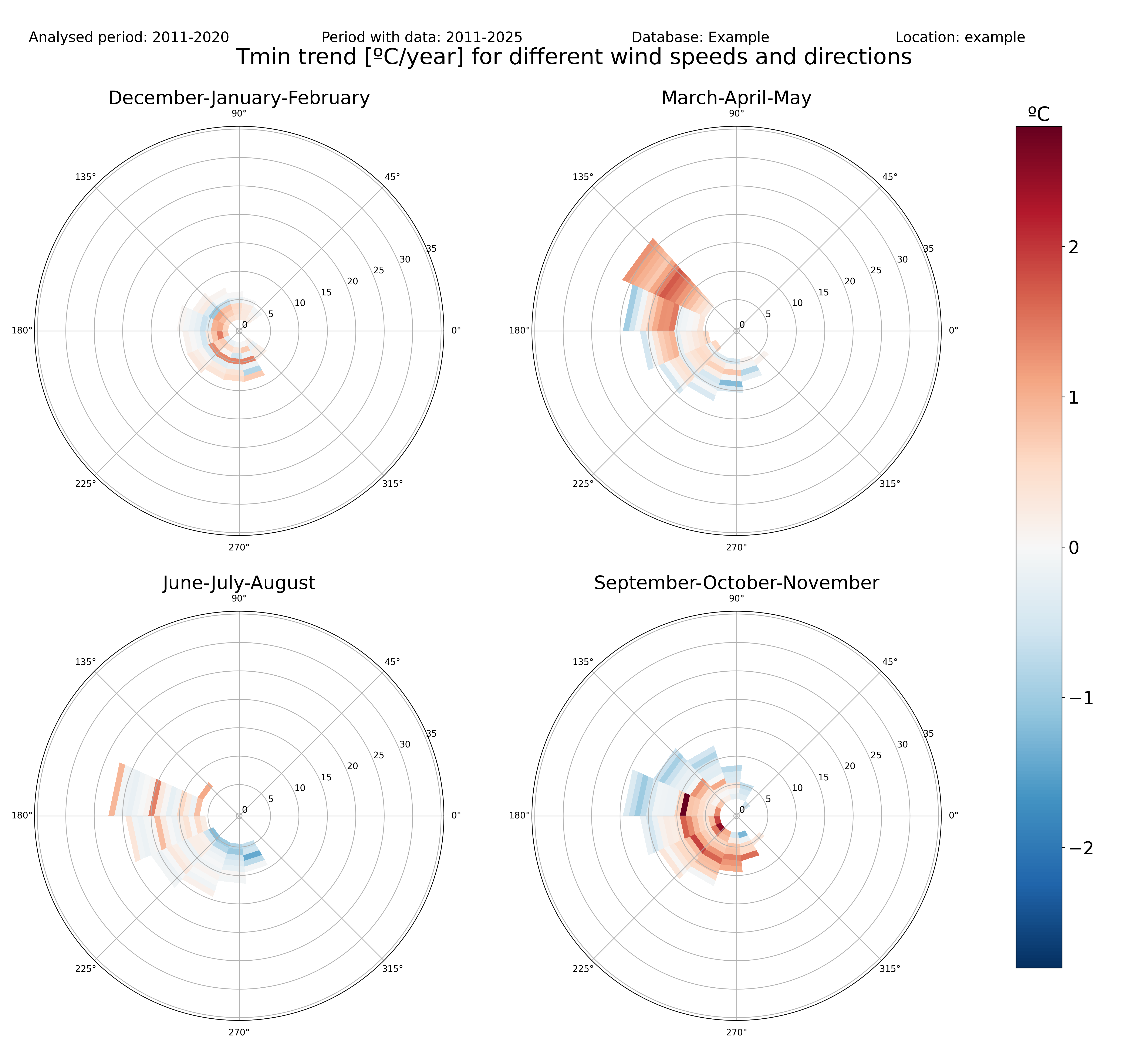

3-variable polar plots: variable, trends and probabilities

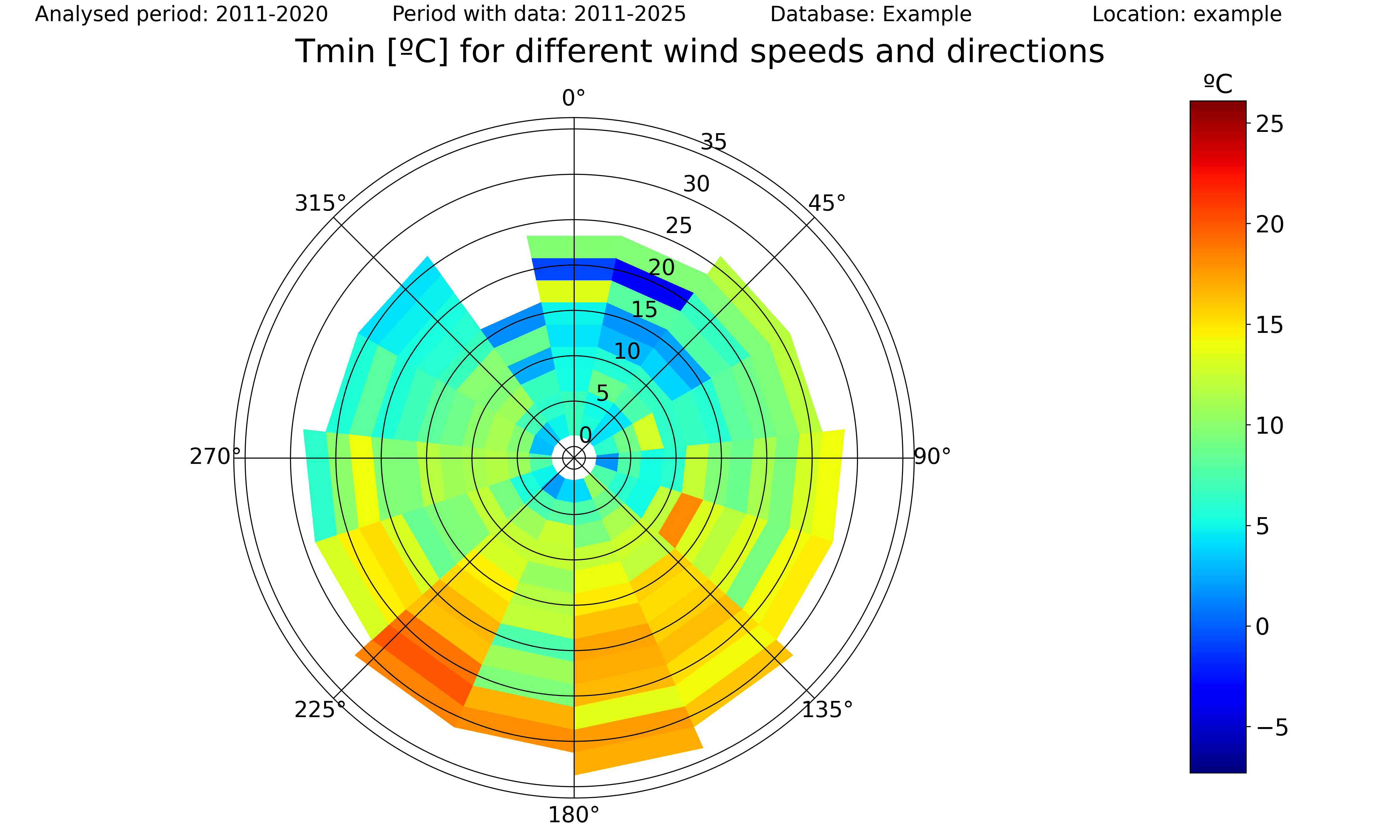

An exciting new group of functionalities of pyClimAir is the creation of three-variable polar plots, which allows to visualize several statistics of a given variable as a function of wind speed and direction. This group of functionalities is composed of three functions, each of them performing an specific task: With the function pyclimair.common.threevar_windrose() the user can easily visualize the (mean or median) values of a given variable for different wind speeds and directions. Moreover, the function pyclimair.common.threevar_windrose_trend() allows to compute the linear trend of a given variable as a function of wind speed and direction. Finally, the pyclimair.common.threevar_windrose_probability() computes the probability of a variable meeting a given condition as a function of wind speed and direction.

All of these three functions accept as argument the “grouping_freq” parameter which, as in other functions of pyclimair, controls the temporal frequency of the data aggregation, so wind-dependencies can be analysed for yearly, monthly or seasonal values.

A set of representative examples of each one of these three functions are shown below:

threevar_windrose(
    df1_complete, ['WindSpeed','WindDir','Tmin'], climate_normal_period,
    'ºC', database, station_name, plotdir+'/3var_windrose_Tmin_pct.png',
    grouping_freq='year', grouping_stat='mean'
    )

threevar_windrose_trend(
    df1_complete, ['WindSpeed','WindDir','Tmin'], climate_normal_period,
    'ºC', database, station_name, plotdir+'/3var_windrose_Tmin_pct.png',
    grouping_freq='season', grouping_stat='mean'
    )

threevar_windrose_probability(
    df1_complete, ['WindSpeed','WindDir','Tmin'], '>20',
    climate_normal_period, 'ºC', database, station_name,
    plotdir+'/3var_probwindrose_Tmin_month_step1.png',
    grouping_freq='month', cmap=cmap_probability
    )

Heat maps of rolling window moving-average plots

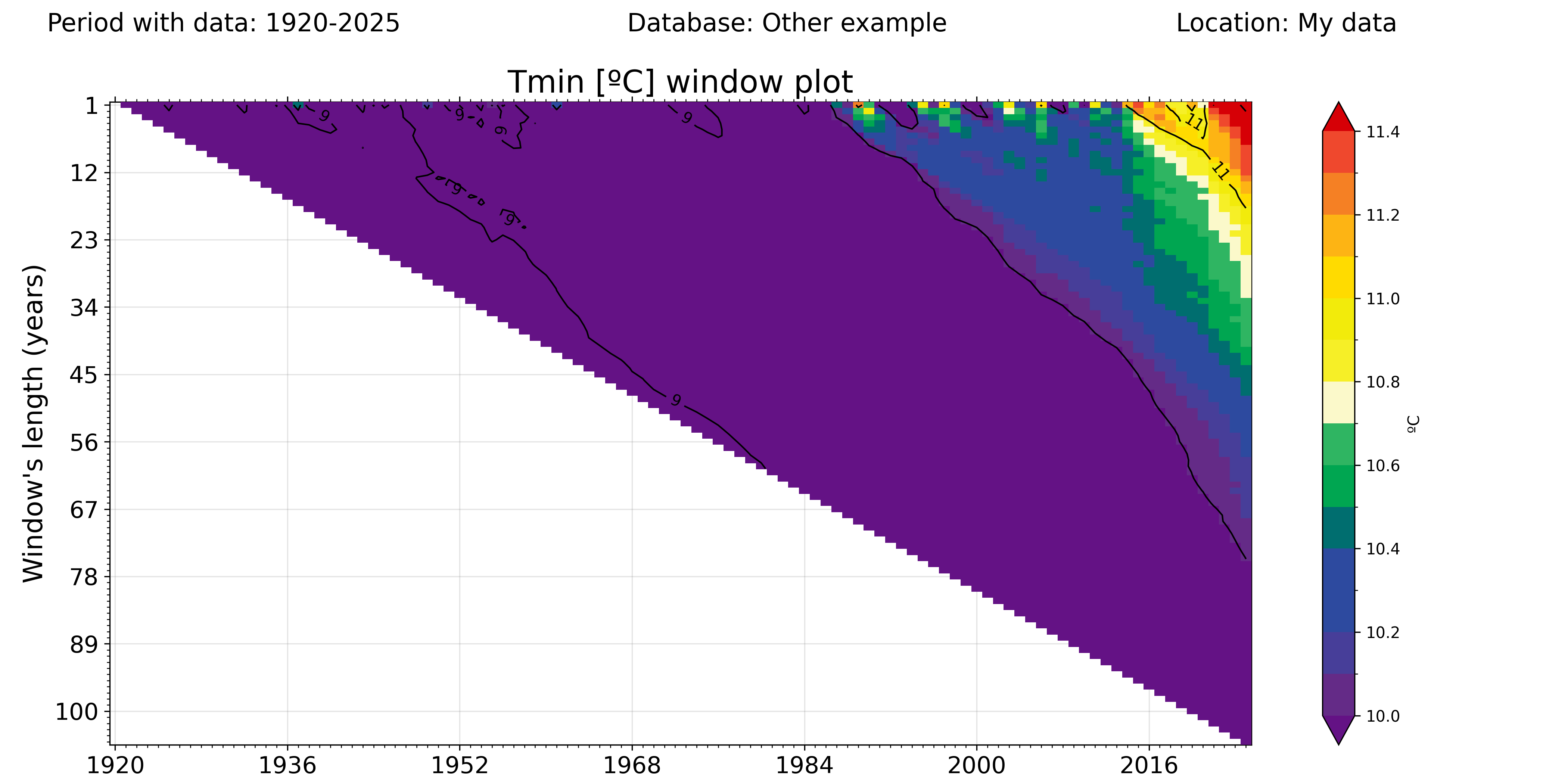

This kind of plots, which are created with the pyclimair.common.window_plot() function, show how a vertain variable has evolved with time, not only its instantaneous value but also its moving-average. The horizontal dimension shows the last analysed year, whereas the vertical dimension shows the lenght of the analysed period. For example: If in the image below one focuses only in the uppermost row, they are studying how the yearly-averaged value of daily minimum temperatures has evolved in time. But the 10th row illustrates how the 10-year moving average of daily Tmean has change. Therefore, this kind of plot not only gives the user a perspective of how a variable has changed in time, but also of the persistence of these changes. In this first example, the plot shows that the yearly mean value of Tmin has gradually increased in time since approximately 1984, and the upward trend is still ongoing, as the signal is propagating to longer window lengths.

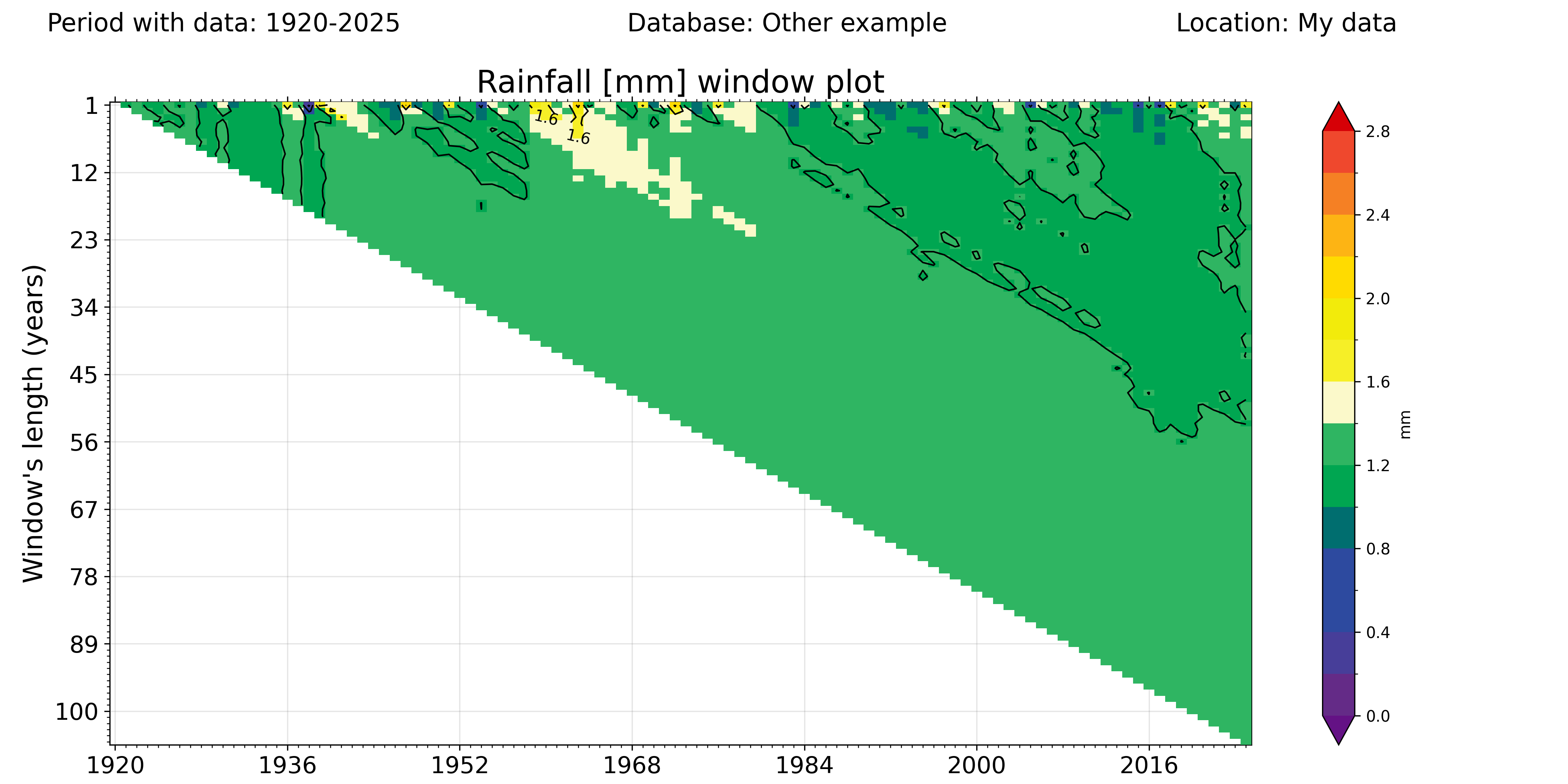

On the contrary, in this second example we can see that the annual average of daily rainfall in the example location presents large variations in the short term (uppermost rows), and no significant long-term trend is visible.

Set the “add_contours” parameter to True if you want to display contour values over the windows, although this option is not recommended for short time series (lower than 20 years of data) as it can result in unaesthetic plots.

window_plot(
    climate_df, var, units, database,
    station_name, plotdir+'/%s_windowplot.png' %var,
    cmap=cmap_window, norm=norm, add_contours=True
    )

Note: These plots have been obtained with data not available in the example data, as the example dataset is not large enough to properly identify trends.
